celestrongps.cpp File Reference

#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <stdarg.h>
#include <math.h>
#include <unistd.h>
#include <time.h>
#include "celestronprotocol.h"
#include "celestrongps.h"

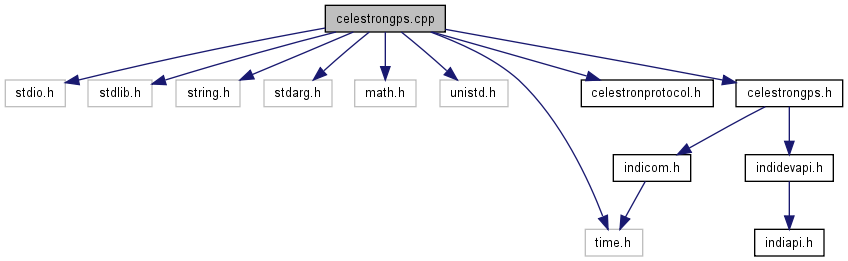

Include dependency graph for celestrongps.cpp:

Go to the source code of this file.

Defines
#define	BASIC_GROUP   "Main Control"
#define	COMM_GROUP   "Communication"
#define	DEC_THRESHOLD   0.05
#define	MOVE_GROUP   "Movement Control"
#define	mydev   "Celestron GPS"
#define	RA_THRESHOLD   0.01
Functions
void	ISGetProperties (const char *dev)
void	ISInit ()
void	ISNewBLOB (const char *, const char *, int *, char **, char **, char **, int)
void	ISNewNumber (const char *dev, const char *name, double values[], char *names[], int n)
void	ISNewSwitch (const char *dev, const char *name, ISState *states, char *names[], int n)
void	ISNewText (const char *dev, const char *name, char *texts[], char *names[], int n)
static void	ISPoll (void *)
Variables
static ISwitch	abortSlewS [] = {{"ABORT", "Abort", ISS_OFF, 0, 0}}
static ISwitchVectorProperty	abortSlewSw = { mydev, "ABORT_MOTION", "Abort Slew/Track", BASIC_GROUP, IP_RW, ISR_1OFMANY, 0, IPS_IDLE, abortSlewS, NARRAY(abortSlewS), "", 0}
static INumber	eq []
static INumberVectorProperty	eqNum
char *	me
static ISwitch	MovementS [] = {{"N", "North", ISS_OFF, 0, 0}, {"W", "West", ISS_OFF, 0, 0}, {"E", "East", ISS_OFF, 0, 0}, {"S", "South", ISS_OFF, 0, 0}}
static ISwitchVectorProperty	MovementSw = { mydev, "MOVEMENT", "Move toward", MOVE_GROUP, IP_RW, ISR_1OFMANY, 0, IPS_IDLE, MovementS, NARRAY(MovementS), "", 0}
static ISwitch	OnCoordSetS [] = {{"SLEW", "Slew", ISS_ON, 0 , 0}, {"TRACK", "Track", ISS_OFF, 0, 0}, {"SYNC", "Sync", ISS_OFF, 0, 0}}
static ISwitchVectorProperty	OnCoordSetSw = { mydev, "ON_COORD_SET", "On Set", BASIC_GROUP, IP_RW, ISR_1OFMANY, 0, IPS_IDLE, OnCoordSetS, NARRAY(OnCoordSetS), "", 0}
static ITextVectorProperty	Port = { mydev, "DEVICE_PORT", "Ports", COMM_GROUP, IP_RW, 0, IPS_IDLE, PortT, NARRAY(PortT), "", 0}
static IText	PortT [] = {{"PORT", "Port", 0, 0, 0, 0}}
static ISwitch	PowerS [] = {{"CONNECT" , "Connect" , ISS_OFF, 0, 0},{"DISCONNECT", "Disconnect", ISS_ON, 0, 0}}
static ISwitchVectorProperty	PowerSw = { mydev, "CONNECTION" , "Connection", COMM_GROUP, IP_RW, ISR_1OFMANY, 0, IPS_IDLE, PowerS, NARRAY(PowerS), "", 0}
static ISwitch	SlewModeS [] = {{"Slew", "", ISS_ON, 0, 0}, {"Find", "", ISS_OFF, 0, 0}, {"Centering", "", ISS_OFF, 0, 0}, {"Guide", "", ISS_OFF, 0, 0}}
static ISwitchVectorProperty	SlewModeSw = { mydev, "Slew rate", "", MOVE_GROUP, IP_RW, ISR_1OFMANY, 0, IPS_IDLE, SlewModeS, NARRAY(SlewModeS), "", 0}
CelestronGPS *	telescope = NULL

---

Define Documentation

#define BASIC_GROUP   "Main Control"

Definition at line 48 of file celestrongps.cpp.

#define COMM_GROUP   "Communication"

Definition at line 47 of file celestrongps.cpp.

#define DEC_THRESHOLD   0.05

Definition at line 33 of file celestrongps.cpp.

#define MOVE_GROUP   "Movement Control"

Definition at line 49 of file celestrongps.cpp.

#define mydev   "Celestron GPS"

Definition at line 34 of file celestrongps.cpp.

#define RA_THRESHOLD   0.01

Definition at line 32 of file celestrongps.cpp.

---

Function Documentation

void ISGetProperties

(

const char *

dev

)

Function defined by Drivers that is called when a Client asks for the definitions of all Properties this Driver supports for the given device.

Parameters:

dev

the name of the device.

Definition at line 101 of file celestrongps.cpp.

void ISInit

(

)

Definition at line 85 of file celestrongps.cpp.

void ISNewBLOB	(	const char *	,
		const char *	,
		int *	,
		char **	,
		char **	,
		char **	,
		int
	)

Definition at line 110 of file celestrongps.cpp.

void ISNewNumber	(	const char *	dev,
		const char *	name,
		double	values[],
		char *	names[],
		int	n
	)

Definition at line 107 of file celestrongps.cpp.

void ISPoll

(

void *

p

)

[static]

Definition at line 109 of file celestrongps.cpp.

---

Variable Documentation

ISwitch abortSlewS[] = {{"ABORT", "Abort", ISS_OFF, 0, 0}} [static]

Definition at line 57 of file celestrongps.cpp.

ISwitchVectorProperty abortSlewSw = { mydev, "ABORT_MOTION", "Abort Slew/Track", BASIC_GROUP, IP_RW, ISR_1OFMANY, 0, IPS_IDLE, abortSlewS, NARRAY(abortSlewS), "", 0} [static]

Definition at line 78 of file celestrongps.cpp.

INumber eq[] [static]

Initial value:

 {
    {"RA",  "RA  H:M:S", "%10.6m",  0., 24., 0., 0., 0, 0, 0},
    {"DEC", "Dec D:M:S", "%10.6m", -90., 90., 0., 0., 0, 0, 0},
}

Definition at line 62 of file celestrongps.cpp.

INumberVectorProperty eqNum [static]

Initial value:

 {
    mydev, "EQUATORIAL_EOD_COORD", "Equatorial JNow", BASIC_GROUP, IP_RW, 0, IPS_IDLE,
    eq, NARRAY(eq), "", 0}

Definition at line 67 of file celestrongps.cpp.

char* me

ISwitch MovementS[] = {{"N", "North", ISS_OFF, 0, 0}, {"W", "West", ISS_OFF, 0, 0}, {"E", "East", ISS_OFF, 0, 0}, {"S", "South", ISS_OFF, 0, 0}} [static]

Definition at line 59 of file celestrongps.cpp.

ISwitchVectorProperty MovementSw = { mydev, "MOVEMENT", "Move toward", MOVE_GROUP, IP_RW, ISR_1OFMANY, 0, IPS_IDLE, MovementS, NARRAY(MovementS), "", 0} [static]

Definition at line 81 of file celestrongps.cpp.

ISwitch OnCoordSetS[] = {{"SLEW", "Slew", ISS_ON, 0 , 0}, {"TRACK", "Track", ISS_OFF, 0, 0}, {"SYNC", "Sync", ISS_OFF, 0, 0}} [static]

Definition at line 56 of file celestrongps.cpp.

ISwitchVectorProperty OnCoordSetSw = { mydev, "ON_COORD_SET", "On Set", BASIC_GROUP, IP_RW, ISR_1OFMANY, 0, IPS_IDLE, OnCoordSetS, NARRAY(OnCoordSetS), "", 0} [static]

Definition at line 77 of file celestrongps.cpp.

ITextVectorProperty Port = { mydev, "DEVICE_PORT", "Ports", COMM_GROUP, IP_RW, 0, IPS_IDLE, PortT, NARRAY(PortT), "", 0} [static]

Definition at line 74 of file celestrongps.cpp.

IText PortT[] = {{"PORT", "Port", 0, 0, 0, 0}} [static]

Definition at line 73 of file celestrongps.cpp.

ISwitch PowerS[] = {{"CONNECT" , "Connect" , ISS_OFF, 0, 0},{"DISCONNECT", "Disconnect", ISS_ON, 0, 0}} [static]

Definition at line 54 of file celestrongps.cpp.

ISwitchVectorProperty PowerSw = { mydev, "CONNECTION" , "Connection", COMM_GROUP, IP_RW, ISR_1OFMANY, 0, IPS_IDLE, PowerS, NARRAY(PowerS), "", 0} [static]

Definition at line 72 of file celestrongps.cpp.

ISwitch SlewModeS[] = {{"Slew", "", ISS_ON, 0, 0}, {"Find", "", ISS_OFF, 0, 0}, {"Centering", "", ISS_OFF, 0, 0}, {"Guide", "", ISS_OFF, 0, 0}} [static]

Definition at line 55 of file celestrongps.cpp.

ISwitchVectorProperty SlewModeSw = { mydev, "Slew rate", "", MOVE_GROUP, IP_RW, ISR_1OFMANY, 0, IPS_IDLE, SlewModeS, NARRAY(SlewModeS), "", 0} [static]

Definition at line 79 of file celestrongps.cpp.

CelestronGPS* telescope = NULL

Definition at line 36 of file celestrongps.cpp.
