indiapi.h File Reference

Constants and Data structure definitions for the interface to the reference INDI C API implementation. More...

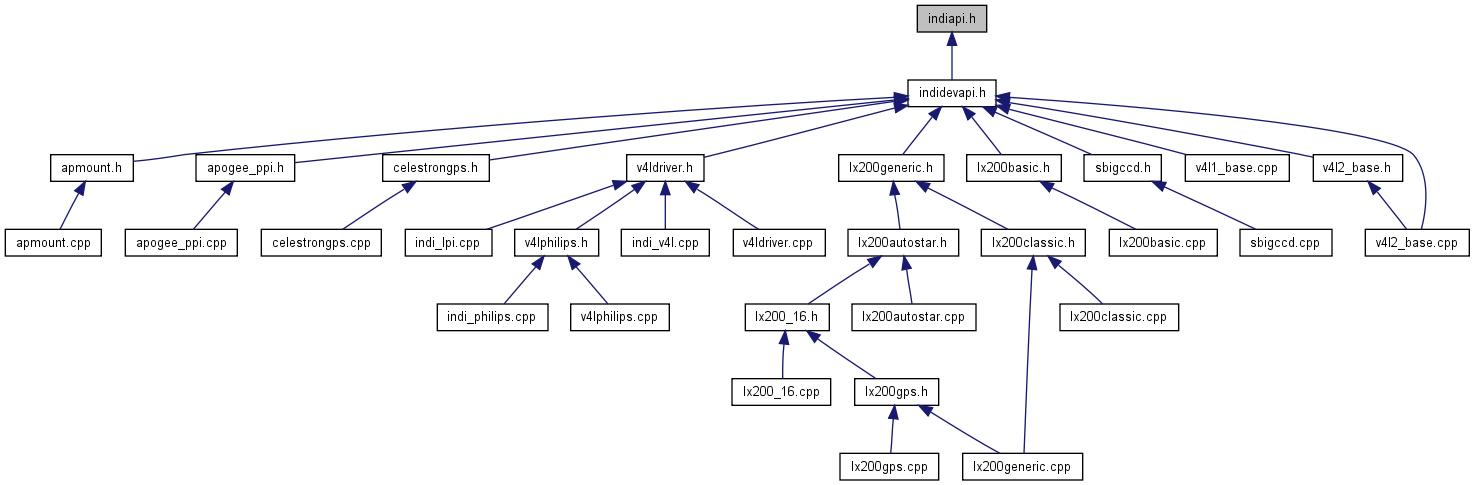

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	_IBLOBVectorProperty
	BLOB (Binary Large Object) vector property descriptor. More...
struct	_ILightVectorProperty
	Light vector property descriptor. More...
struct	_INumberVectorProperty
	Number vector property descriptor. More...
struct	_ISwitchVectorProperty
	Switch vector property descriptor. More...
struct	_ITextVectorProperty
	Text vector property descriptor. More...
struct	IBLOB
	One Blob (Binary Large Object) descriptor. More...
struct	ILight
	One light descriptor. More...
struct	INumber
	One number descriptor. More...
struct	ISwitch
	One switch descriptor. More...
struct	IText
	One text descriptor. More...
Defines
#define	INDIV   1.5
#define	MAXINDIBLOBFMT   32
#define	MAXINDIDEVICE   32
#define	MAXINDIFORMAT   32
#define	MAXINDIGROUP   32
#define	MAXINDILABEL   32
#define	MAXINDINAME   32
#define	MAXINDITSTAMP   32
#define	NARRAY(a)   (sizeof(a)/sizeof(a[0]))
Typedefs
typedef struct _IBLOBVectorProperty	IBLOBVectorProperty
typedef struct _ILightVectorProperty	ILightVectorProperty
typedef struct _INumberVectorProperty	INumberVectorProperty
typedef struct _ISwitchVectorProperty	ISwitchVectorProperty
typedef struct _ITextVectorProperty	ITextVectorProperty
Enumerations
enum	IPerm { IP_RO, IP_WO, IP_RW }
enum	IPState { IPS_IDLE, IPS_OK, IPS_BUSY, IPS_ALERT }
enum	ISRule { ISR_1OFMANY, ISR_ATMOST1, ISR_NOFMANY }
enum	ISState { ISS_OFF, ISS_ON }

---

Detailed Description

Constants and Data structure definitions for the interface to the reference INDI C API implementation.

Author:

Elwood C. Downey

Definition in file indiapi.h.

---

Define Documentation

#define INDIV   1.5

Definition at line 63 of file indiapi.h.

#define MAXINDIBLOBFMT   32

Definition at line 105 of file indiapi.h.

#define MAXINDIDEVICE   32

Definition at line 102 of file indiapi.h.

#define MAXINDIFORMAT   32

Definition at line 104 of file indiapi.h.

#define MAXINDIGROUP   32

Definition at line 103 of file indiapi.h.

#define MAXINDILABEL   32

Definition at line 101 of file indiapi.h.

#define MAXINDINAME   32

Definition at line 100 of file indiapi.h.

#define MAXINDITSTAMP   32

Definition at line 106 of file indiapi.h.

#define NARRAY

(

a

)

(sizeof(a)/sizeof(a[0]))

Handy macro to find the number of elements in array a[].

Must be used with actual array, not pointer.

Definition at line 361 of file indiapi.h.

---

Typedef Documentation

typedef struct _IBLOBVectorProperty IBLOBVectorProperty

typedef struct _ILightVectorProperty ILightVectorProperty

typedef struct _INumberVectorProperty INumberVectorProperty

typedef struct _ISwitchVectorProperty ISwitchVectorProperty

typedef struct _ITextVectorProperty ITextVectorProperty

---

Enumeration Type Documentation

enum IPerm

Permission hint, with respect to client.

Enumerator:

IP_RO
IP_WO
IP_RW

Definition at line 93 of file indiapi.h.

enum IPState

Property state.

Enumerator:

IPS_IDLE
IPS_OK
IPS_BUSY
IPS_ALERT

Definition at line 79 of file indiapi.h.

enum ISRule

Switch vector rule hint.

Enumerator:

ISR_1OFMANY
ISR_ATMOST1
ISR_NOFMANY

Definition at line 86 of file indiapi.h.

enum ISState

Switch state.

Enumerator:

ISS_OFF
ISS_ON

Definition at line 72 of file indiapi.h.
