indidevapi.h File Reference

Interface to the reference INDI C API device implementation on the Device Driver side. More...

#include "indiapi.h"

Include dependency graph for indidevapi.h:

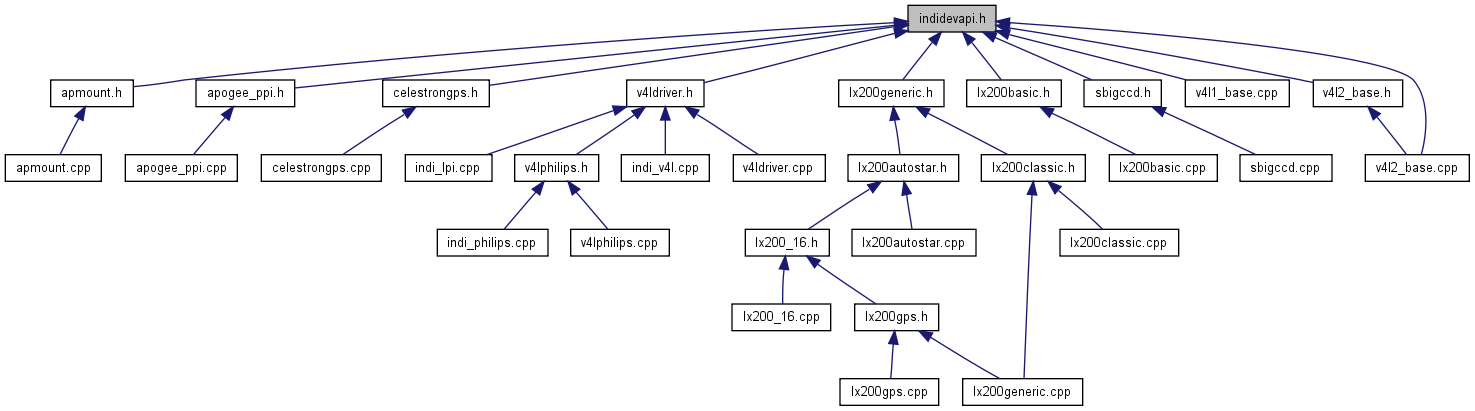

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Typedefs
typedef void(	IE_CBF )(int readfiledes, void *userpointer)
typedef void(	IE_TCF )(void *userpointer)
typedef void(	IE_WPF )(void *userpointer)
Functions
void	fillNumber (INumber *np, const char *name, const char *label, const char *format, double min, double max, double step, double value)
void	fillNumberVector (INumberVectorProperty *nvp, INumber *np, int nnp, const char *dev, const char *name, const char *label, const char *group, IPerm p, double timeout, IPState s)
void	fillSwitch (ISwitch *sp, const char *name, const char *label, ISState s)
void	fillSwitchVector (ISwitchVectorProperty *svp, ISwitch *sp, int nsp, const char *dev, const char *name, const char *label, const char *group, IPerm p, ISRule r, double timeout, IPState s)
void	fillText (IText *tp, const char *name, const char *label, const char *initialText)
void	fillTextVector (ITextVectorProperty *tvp, IText *tp, int ntp, const char *dev, const char *name, const char *label, const char *group, IPerm p, double timeout, IPState s)
void	IDDefBLOB (const IBLOBVectorProperty *b, const char *msg,...)
void	IDDefLight (const ILightVectorProperty *l, const char *msg,...)
void	IDDefNumber (const INumberVectorProperty *n, const char *msg,...)
void	IDDefSwitch (const ISwitchVectorProperty *s, const char *msg,...)
void	IDDefText (const ITextVectorProperty *t, const char *msg,...)
void	IDDelete (const char *dev, const char *name, const char *msg,...)
void	IDLog (const char *msg,...)
void	IDMessage (const char *dev, const char *msg,...)
void	IDSetBLOB (const IBLOBVectorProperty *b, const char *msg,...)
void	IDSetLight (const ILightVectorProperty *l, const char *msg,...)
void	IDSetNumber (const INumberVectorProperty *n, const char *msg,...)
void	IDSetSwitch (const ISwitchVectorProperty *s, const char *msg,...)
void	IDSetText (const ITextVectorProperty *t, const char *msg,...)
int	IEAddCallback (int readfiledes, IE_CBF *fp, void *userpointer)
int	IEAddTimer (int millisecs, IE_TCF *fp, void *userpointer)
int	IEAddWorkProc (IE_WPF *fp, void *userpointer)
void	IERmCallback (int callbackid)
void	IERmTimer (int timerid)
void	IERmWorkProc (int workprocid)
void	ISGetProperties (const char *dev)
void	ISNewBLOB (const char *dev, const char *name, int sizes[], char *blobs[], char *formats[], char *names[], int n)
void	ISNewNumber (const char *dev, const char *name, double *doubles, char *names[], int n)
void	ISNewSwitch (const char *dev, const char *name, ISState *states, char *names[], int n)
void	ISNewText (const char *dev, const char *name, char *texts[], char *names[], int n)
INumber *	IUFindNumber (const INumberVectorProperty *tp, const char *name)
ISwitch *	IUFindOnSwitch (const ISwitchVectorProperty *tp)
ISwitch *	IUFindSwitch (const ISwitchVectorProperty *tp, const char *name)
IText *	IUFindText (const ITextVectorProperty *tp, const char *name)
void	IUResetSwitches (const ISwitchVectorProperty *svp)
void	IUSaveText (IText *tp, const char *newtext)
void	IUUpdateMinMax (INumberVectorProperty *nvp)
int	IUUpdateNumbers (INumberVectorProperty *nvp, double values[], char *names[], int n)
int	IUUpdateSwitches (ISwitchVectorProperty *svp, ISState *states, char *names[], int n)

---

Detailed Description

Interface to the reference INDI C API device implementation on the Device Driver side.

Author:

Elwood C. Downey

Jasem Mutlaq

This file is divided into two main sections:

1. Functions the INDI device driver framework defines which the Driver may call:
   • IDxxx functions to send messages to an INDI client.
   • IExxx functions to implement the event driven model.
   • IUxxx functions to perform handy utility functions.

2. Functions the INDI device driver framework calls which the Driver must define:
   • ISxxx to respond to messages from a Client.

Definition in file indidevapi.h.

---

Function Documentation

void IDDelete	(	const char *	dev,
		const char *	name,
		const char *	msg,
			...
	)

Function Drivers call to inform Clients a Property is no longer available, or the entire device is gone if name is NULL.

Parameters:

	dev	device name. If device name is NULL, the entire device will be deleted.
	name	property name to be deleted.
	msg	message in printf style to send to the client.

void IDLog	(	const char *	msg,
			...
	)

Function Drivers call to log a message locally.

The message is not sent to any Clients.

Parameters:

msg

message in printf style to send to the client.

void IDMessage	(	const char *	dev,
		const char *	msg,
			...
	)

Function Drivers call to send log messages to Clients.

If dev is specified the Client shall associate the message with that device; if dev is NULL the Client shall treat the message as generic from no specific Device.

Parameters:

	dev	device name
	msg	message in printf style to send to the client.

void ISGetProperties

(

const char *

dev

)

Function defined by Drivers that is called when a Client asks for the definitions of all Properties this Driver supports for the given device.

Parameters:

dev

the name of the device.

Definition at line 113 of file apmount.cpp.
