ConfigurationView QML Type

This is an abstract view to display the configuration of an application. More...

Import Statement: import org.kde.kirigamiaddons.settings

List of all members, including inherited members

Properties

configViewItem : QtObject
modules : list<ConfigurationModule>
title : string
window : Kirigami.ApplicationWindow

Methods

open(defaultModule)

Detailed Description

The various configuration modules can be defined by providing ConfigurationModule to the modules property.

On desktop, this will display the modules in a list view and displaying the actual page next to it. On mobile, only the list of modules will be initially displayed.

import QtQuick.Controls as Controls
import org.kde.kirigamiaddons.settings as KirigamiSettings

Controls.Button {
    id: button

    KirigamiSettings.ConfigurationView {
        id: configuration

        window: button.Controls.ApplicationWindow.window as Kirigami.ApplicationWindow

        modules: [
            KirigamiSettings.ConfigurationModule {
                moduleId: "appearance"
                text: i18nc("@action:button", "Appearance")
                icon.name: "preferences-desktop-theme-global"
                page: () => Qt.createComponent("org.kde.tokodon", "AppearancePage")
            },
            ...
            KirigamiSettings.ConfigurationModule {
                moduleId: "about"
                text: i18nc("@action:button", "About Tokodon")
                icon.name: "help-about"
                page: () => Qt.createComponent("org.kde.kirigamiaddons.formcard", "AboutPage")
                category: i18nc("@title:group", "About")
            },
            KirigamiSettings.ConfigurationModule {
                moduleId: "aboutkde"
                text: i18nc("@action:button", "About KDE")
                icon.name: "kde"
                page: () => Qt.createComponent("org.kde.kirigamiaddons.formcard", "AboutKDE")
                category: i18nc("@title:group", "About")
            }
        ]
    }

    icon.name: 'settings-configure-symbolic'
    text: i18nc("@action:button", "Settings")

    onClicked: configuration.open()
}

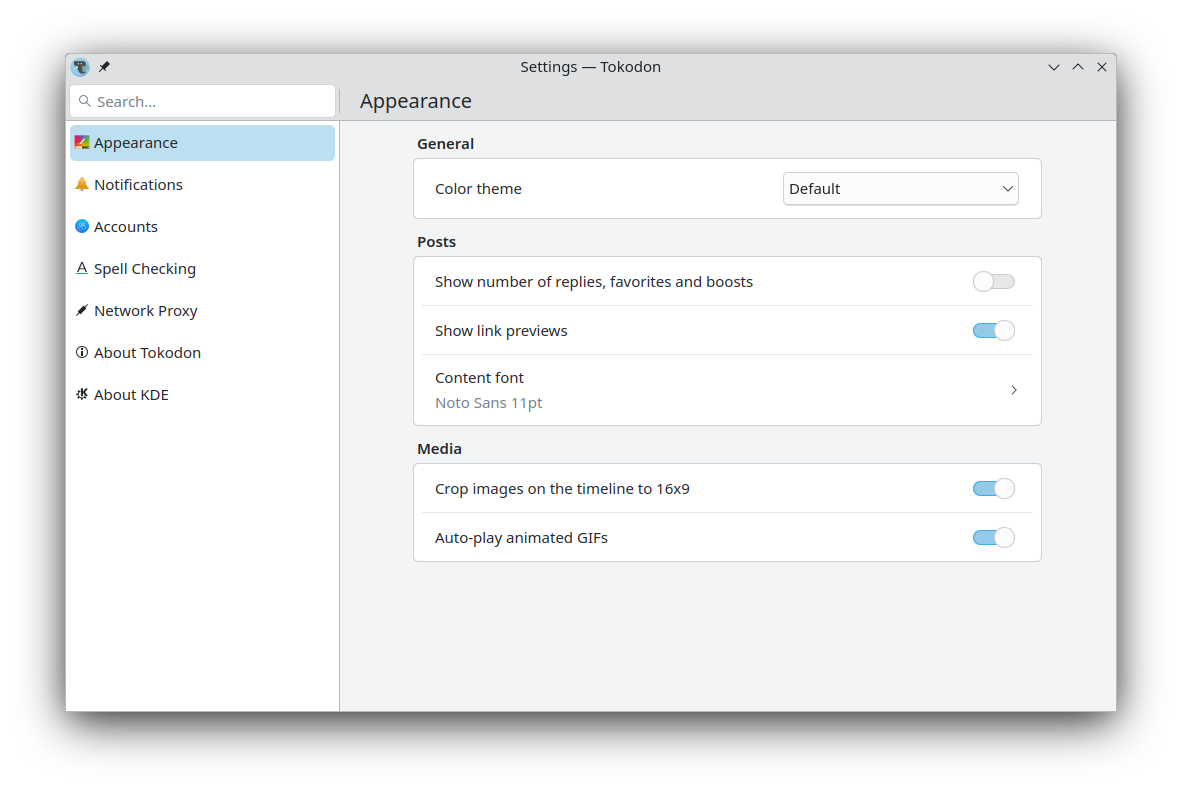

This will result in the following dialog on desktop:

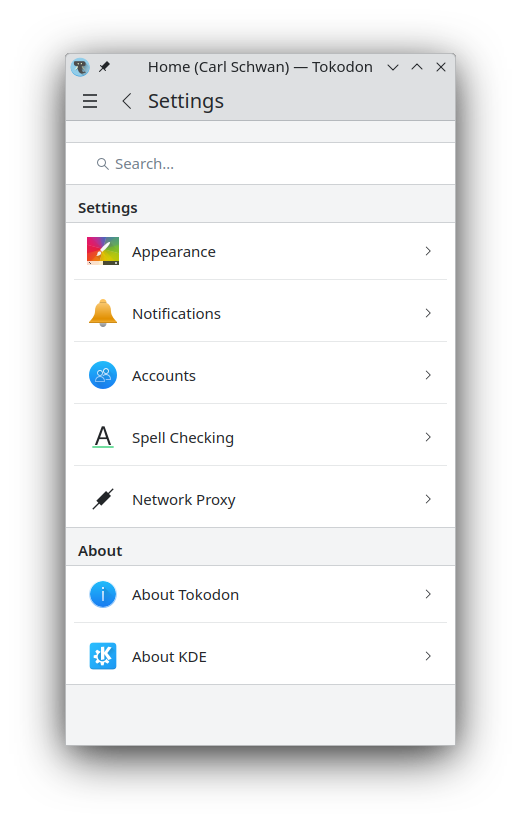

And the following page on mobile:

Property Documentation

configViewItem : QtObject

The current config page/window depending on platform.

Null if one currently doesn't exist.

modules : list<ConfigurationModule>

This property holds the list of pages for the settings.

title : string [default: "Settings"]

This property holds the title of the config view.

window : Kirigami.ApplicationWindow

This property holds the parent window.

This needs to be set before calling open.

Method Documentation

open(defaultModule = '')

Open the configuration window for the given defaultModule.

The defaultModule corresponds to the moduleId of the default configuration that should be preselected when opening the configuration view. By default it is not specified, this will choose the first module.
