lx200driver.h File Reference

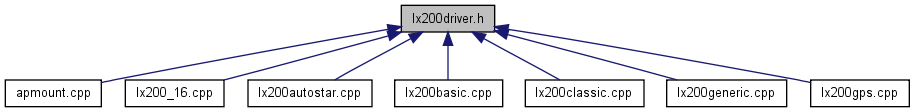

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Defines
#define	activateAltDecAntiBackSlash()   portWrite("#$BAdd#")
#define	activateAzRaAntiBackSlash()   portWrite("#$BZdd#")
#define	alignGPSScope()   portWrite("#:Aa#")
#define	APPark()   portWrite("#:KA#")
#define	APUnpark()   portWrite("#:PO#");
#define	decreaseReticleBrightness()   portWrite("#:B-#")
#define	disableDecAltPec()   portWrite("#:QA-#")
#define	disableRaAzPec()   portWrite("#:QZ-#")
#define	enableDecAltPec()   portWrite("#:QA+#")
#define	enableRaAzPec()   portWrite("#:QZ+#")
#define	getFullVersion(x)   getCommandString(x, "#:GVF#")
#define	getLocalTime12(x)   getCommandSexa(x, "#:Ga#")
#define	getLocalTime24(x)   getCommandSexa(x, "#:GL#")
#define	getLX200Alt(x)   getCommandSexa(x, "#:GA#")
#define	getLX200Az(x)   getCommandSexa(x, "#:GZ#")
#define	getLX200DEC(x)   getCommandSexa(x, "#:GD#")
#define	getLX200RA(x)   getCommandSexa(x, "#:GR#")
#define	getMaxElevationLimit(x)   getCommandInt(x, "#:Go#")
#define	getMinElevationLimit(x)   getCommandInt(x, "#:Gh#")
#define	getObjectDEC(x)   getCommandSexa(x, "#:Gd#")
#define	getObjectInfo(x)   getCommandString(x, "#:LI#")
#define	getObjectRA(x)   getCommandSexa(x, "#:Gr#")
#define	getProductName(x)   getCommandString(x, "#:GVP#")
#define	getSDTime(x)   getCommandSexa(x, "#:GS#")
#define	getUTCOffset(x)   getCommandInt(x, "#:GG#")
#define	getVersionDate(x)   getCommandString(x, "#:GVD#")
#define	getVersionNumber(x)   getCommandString(x, "#:GVN#")
#define	getVersionTime(x)   getCommandString(x, "#:GVT#")
#define	gpsRestart()   portWrite("#:I#")
#define	gpsSleep()   portWrite("#:hN#")
#define	gpsWakeUp()   portWrite("#:hW#")
#define	increaseReticleBrightness()   portWrite("#:B+#")
#define	MaxFocuserSpeed   4
#define	MaxReticleDutyCycle   15
#define	seekHomeAndSave()   portWrite("#:hS#")
#define	seekHomeAndSet()   portWrite("#:hF#")
#define	SelenographicSync()   portWrite("#:CL#")
#define	setFocuserSpeed(x)   setCommandInt(x, "#:F")
#define	setLocalTime(x, y, z)   setCommandXYZ(x,y,z, "#:SL")
#define	setReticleDutyFlashCycle(x)   setCommandInt(x, "#:BD")
#define	setReticleFlashRate(x)   setCommandInt(x, "#:B")
#define	setSDTime(x, y, z)   setCommandXYZ(x,y,z, "#:SS")
#define	setSlewSpeed(x)   setCommandInt(x, "#:Sw")
#define	slewToAltAz()   setStandardProcedure("#:MA#")
#define	slewToPark()   portWrite("#:hP#")
#define	toggleTimeFormat()   portWrite("#:H#")
#define	turnFanOff()   portWrite("#:f-#")
#define	turnFanOn()   portWrite("#:f+#")
#define	turnFieldDeRotatorOff()   portWrite("#:r-#")
#define	turnFieldDeRotatorOn()   portWrite("#:r+#")
#define	turnGPS_StreamOn()   getCommandString(x, "#:gps#")
#define	turnGPSOff()   portWrite("#:g-#")
#define	turnGPSOn()   portWrite("#:g+#")
#define	updateGPS_System()   setStandardProcedure("#:gT#")
Enumerations
enum	DeepSkyCatalog {   LX200_NGC, LX200_IC, LX200_UGC, LX200_CALDWELL,   LX200_ARP, LX200_ABELL, LX200_MESSIER_C }
enum	StarCatalog { LX200_STAR, LX200_SAO, LX200_GCVS }
enum	TAlign { LX200_ALIGN_POLAR, LX200_ALIGN_ALTAZ, LX200_ALIGN_LAND }
enum	TCatalog { LX200_STAR_C, LX200_DEEPSKY_C }
enum	TDirection {   LX200_NORTH, LX200_WEST, LX200_EAST, LX200_SOUTH,   LX200_ALL }
enum	TFocusMotion { LX200_FOCUSIN, LX200_FOCUSOUT }
enum	TFocusSpeed { LX200_HALTFOCUS = 0, LX200_FOCUSFAST, LX200_FOCUSMEDIUM, LX200_FOCUSSLOW }
enum	TFormat { LX200_FORMAT_SHORT, LX200_FORMAT_LONG }
enum	TFreq { LX200_TRACK_DEFAULT, LX200_TRACK_LUNAR, LX200_TRACK_MANUAL }
enum	TSlew { LX200_SLEW_MAX, LX200_SLEW_FIND, LX200_SLEW_CENTER, LX200_SLEW_GUIDE }
enum	TTimeFormat { LX200_24, LX200_AM, LX200_PM }
Functions
int	abortSlew ()
char	ACK ()
int	checkLX200Format ()
int	Connect (const char *device)
void	Disconnect ()
int	getCalenderDate (char *date)
int	getCommandInt (int *value, const char *cmd)
int	getCommandSexa (double *value, const char *cmd)
int	getCommandString (char *data, const char *cmd)
int	getHomeSearchStatus (int *status)
int	getNumberOfBars (int *value)
int	getOTATemp (double *value)
int	getSiteLatitude (int *dd, int *mm)
int	getSiteLongitude (int *ddd, int *mm)
int	getSiteName (char *siteName, int siteNum)
int	getTimeFormat (int *format)
int	getTrackFreq (double *value)
int	HaltMovement (int direction)
int	LX200readOut (int timeout)
int	MoveTo (int direction)
int	openPort (const char *portID)
int	portRead (char *buf, int nbytes, int timeout)
int	portWrite (const char *buf)
int	selectAPTrackingMode (int trackMode)
int	selectCatalogObject (int catalog, int NNNN)
int	selectSite (int siteNum)
int	selectSubCatalog (int catalog, int subCatalog)
int	selectTrackingMode (int trackMode)
int	setAlignmentMode (unsigned int alignMode)
int	setCalenderDate (int dd, int mm, int yy)
int	setCommandInt (int data, const char *cmd)
int	setCommandXYZ (int x, int y, int z, const char *cmd)
int	setFocuserMotion (int motionType)
int	setFocuserSpeedMode (int speedMode)
int	setMaxElevationLimit (int max)
int	setMaxSlewRate (int slewRate)
int	setMinElevationLimit (int min)
int	setObjAlt (double alt)
int	setObjAz (double az)
int	setObjectDEC (double dec)
int	setObjectRA (double ra)
int	setSiteLatitude (double Lat)
int	setSiteLongitude (double Long)
int	setSiteName (char *siteName, int siteNum)
int	setSlewMode (int slewMode)
int	setStandardProcedure (char *writeData)
int	setTrackFreq (double trackF)
int	setUTCOffset (double hours)
int	Slew ()
int	Sync (char *matchedObject)
int	testAP ()
int	testTelescope ()
int	updateSkyCommanderCoord (double *ra, double *dec)

---

Define Documentation



#define activateAltDecAntiBackSlash

(

)

portWrite("#$BAdd#")

Definition at line 96 of file lx200driver.h.



#define activateAzRaAntiBackSlash

(

)

portWrite("#$BZdd#")

Definition at line 97 of file lx200driver.h.



#define alignGPSScope

(

)

portWrite("#:Aa#")

Definition at line 87 of file lx200driver.h.



#define APPark

(

)

portWrite("#:KA#")

Definition at line 113 of file lx200driver.h.



#define APUnpark

(

)

portWrite("#:PO#");

Definition at line 114 of file lx200driver.h.



#define decreaseReticleBrightness

(

)

portWrite("#:B-#")

Definition at line 103 of file lx200driver.h.



#define disableDecAltPec

(

)

portWrite("#:QA-#")

Definition at line 93 of file lx200driver.h.



#define disableRaAzPec

(

)

portWrite("#:QZ-#")

Definition at line 95 of file lx200driver.h.



#define enableDecAltPec

(

)

portWrite("#:QA+#")

Definition at line 92 of file lx200driver.h.



#define enableRaAzPec

(

)

portWrite("#:QZ+#")

Definition at line 94 of file lx200driver.h.

#define getFullVersion

(

x

)

getCommandString(x, "#:GVF#")

Definition at line 64 of file lx200driver.h.

#define getLocalTime12

(

x

)

getCommandSexa(x, "#:Ga#")

Definition at line 54 of file lx200driver.h.

#define getLocalTime24

(

x

)

getCommandSexa(x, "#:GL#")

Definition at line 55 of file lx200driver.h.

#define getLX200Alt

(

x

)

getCommandSexa(x, "#:GA#")

Definition at line 57 of file lx200driver.h.

#define getLX200Az

(

x

)

getCommandSexa(x, "#:GZ#")

Definition at line 58 of file lx200driver.h.

#define getLX200DEC

(

x

)

getCommandSexa(x, "#:GD#")

Definition at line 51 of file lx200driver.h.

#define getLX200RA

(

x

)

getCommandSexa(x, "#:GR#")

Definition at line 50 of file lx200driver.h.

#define getMaxElevationLimit

(

x

)

getCommandInt(x, "#:Go#")

Definition at line 71 of file lx200driver.h.

#define getMinElevationLimit

(

x

)

getCommandInt(x, "#:Gh#")

Definition at line 72 of file lx200driver.h.

#define getObjectDEC

(

x

)

getCommandSexa(x, "#:Gd#")

Definition at line 53 of file lx200driver.h.

#define getObjectInfo

(

x

)

getCommandString(x, "#:LI#")

Definition at line 61 of file lx200driver.h.

#define getObjectRA

(

x

)

getCommandSexa(x, "#:Gr#")

Definition at line 52 of file lx200driver.h.

#define getProductName

(

x

)

getCommandString(x, "#:GVP#")

Definition at line 66 of file lx200driver.h.

#define getSDTime

(

x

)

getCommandSexa(x, "#:GS#")

Definition at line 56 of file lx200driver.h.

#define getUTCOffset

(

x

)

getCommandInt(x, "#:GG#")

Definition at line 70 of file lx200driver.h.

#define getVersionDate

(

x

)

getCommandString(x, "#:GVD#")

Definition at line 62 of file lx200driver.h.

#define getVersionNumber

(

x

)

getCommandString(x, "#:GVN#")

Definition at line 65 of file lx200driver.h.

#define getVersionTime

(

x

)

getCommandString(x, "#:GVT#")

Definition at line 63 of file lx200driver.h.



#define gpsRestart

(

)

portWrite("#:I#")

Definition at line 90 of file lx200driver.h.



#define gpsSleep

(

)

portWrite("#:hN#")

Definition at line 88 of file lx200driver.h.



#define gpsWakeUp

(

)

portWrite("#:hW#")

Definition at line 89 of file lx200driver.h.



#define increaseReticleBrightness

(

)

portWrite("#:B+#")

Definition at line 102 of file lx200driver.h.

#define MaxFocuserSpeed   4

Definition at line 47 of file lx200driver.h.

#define MaxReticleDutyCycle   15

Definition at line 46 of file lx200driver.h.



#define seekHomeAndSave

(

)

portWrite("#:hS#")

Definition at line 106 of file lx200driver.h.



#define seekHomeAndSet

(

)

portWrite("#:hF#")

Definition at line 107 of file lx200driver.h.



#define SelenographicSync

(

)

portWrite("#:CL#")

Definition at line 98 of file lx200driver.h.

#define setFocuserSpeed

(

x

)

setCommandInt(x, "#:F")

Definition at line 77 of file lx200driver.h.

#define setLocalTime	(	x,
		y,
		z		)	setCommandXYZ(x,y,z, "#:SL")

Definition at line 81 of file lx200driver.h.

#define setReticleDutyFlashCycle

(

x

)

setCommandInt(x, "#:BD")

Definition at line 75 of file lx200driver.h.

#define setReticleFlashRate

(

x

)

setCommandInt(x, "#:B")

Definition at line 76 of file lx200driver.h.

#define setSDTime	(	x,
		y,
		z		)	setCommandXYZ(x,y,z, "#:SS")

Definition at line 82 of file lx200driver.h.

#define setSlewSpeed

(

x

)

setCommandInt(x, "#:Sw")

Definition at line 78 of file lx200driver.h.



#define slewToAltAz

(

)

setStandardProcedure("#:MA#")

Definition at line 100 of file lx200driver.h.



#define slewToPark

(

)

portWrite("#:hP#")

Definition at line 110 of file lx200driver.h.



#define toggleTimeFormat

(

)

portWrite("#:H#")

Definition at line 101 of file lx200driver.h.



#define turnFanOff

(

)

portWrite("#:f-#")

Definition at line 105 of file lx200driver.h.



#define turnFanOn

(

)

portWrite("#:f+#")

Definition at line 104 of file lx200driver.h.



#define turnFieldDeRotatorOff

(

)

portWrite("#:r-#")

Definition at line 109 of file lx200driver.h.



#define turnFieldDeRotatorOn

(

)

portWrite("#:r+#")

Definition at line 108 of file lx200driver.h.



#define turnGPS_StreamOn

(

)

getCommandString(x, "#:gps#")

Definition at line 67 of file lx200driver.h.



#define turnGPSOff

(

)

portWrite("#:g-#")

Definition at line 86 of file lx200driver.h.



#define turnGPSOn

(

)

portWrite("#:g+#")

Definition at line 85 of file lx200driver.h.



#define updateGPS_System

(

)

setStandardProcedure("#:gT#")

Definition at line 91 of file lx200driver.h.

---

Enumeration Type Documentation

enum DeepSkyCatalog

Enumerator:

LX200_NGC
LX200_IC
LX200_UGC
LX200_CALDWELL
LX200_ARP
LX200_ABELL
LX200_MESSIER_C

Definition at line 42 of file lx200driver.h.

enum StarCatalog

Enumerator:

LX200_STAR
LX200_SAO
LX200_GCVS

Definition at line 40 of file lx200driver.h.

enum TAlign

Enumerator:

LX200_ALIGN_POLAR
LX200_ALIGN_ALTAZ
LX200_ALIGN_LAND

Definition at line 27 of file lx200driver.h.

enum TCatalog

Enumerator:

LX200_STAR_C
LX200_DEEPSKY_C

Definition at line 38 of file lx200driver.h.

enum TDirection

Enumerator:

LX200_NORTH
LX200_WEST
LX200_EAST
LX200_SOUTH
LX200_ALL

Definition at line 29 of file lx200driver.h.

enum TFocusMotion

Enumerator:

LX200_FOCUSIN
LX200_FOCUSOUT

Definition at line 35 of file lx200driver.h.

enum TFocusSpeed

Enumerator:

LX200_HALTFOCUS
LX200_FOCUSFAST
LX200_FOCUSMEDIUM
LX200_FOCUSSLOW

Definition at line 36 of file lx200driver.h.

enum TFormat

Enumerator:

LX200_FORMAT_SHORT
LX200_FORMAT_LONG

Definition at line 31 of file lx200driver.h.

enum TFreq

Enumerator:

LX200_TRACK_DEFAULT
LX200_TRACK_LUNAR
LX200_TRACK_MANUAL

Definition at line 44 of file lx200driver.h.

enum TSlew

Enumerator:

LX200_SLEW_MAX
LX200_SLEW_FIND
LX200_SLEW_CENTER
LX200_SLEW_GUIDE

Definition at line 25 of file lx200driver.h.

enum TTimeFormat

Enumerator:

LX200_24
LX200_AM
LX200_PM

Definition at line 33 of file lx200driver.h.

---

Function Documentation

int abortSlew

(

)

char ACK

(

)

int checkLX200Format

(

)

int Connect

(

const char *

device

)

void Disconnect

(

)

int getCalenderDate

(

char *

date

)

int getCommandInt	(	int *	value,
		const char *	cmd
	)

int getCommandSexa	(	double *	value,
		const char *	cmd
	)

int getCommandString	(	char *	data,
		const char *	cmd
	)

int getHomeSearchStatus

(

int *

status

)

int getNumberOfBars

(

int *

value

)

int getOTATemp

(

double *

value

)

int getSiteLatitude	(	int *	dd,
		int *	mm
	)

int getSiteLongitude	(	int *	ddd,
		int *	mm
	)

int getSiteName	(	char *	siteName,
		int	siteNum
	)

int getTimeFormat

(

int *

format

)

int getTrackFreq

(

double *

value

)

int HaltMovement

(

int

direction

)

int LX200readOut

(

int

timeout

)

int MoveTo

(

int

direction

)

int openPort

(

const char *

portID

)

int portRead	(	char *	buf,
		int	nbytes,
		int	timeout
	)

int portWrite

(

const char *

buf

)

int selectAPTrackingMode

(

int

trackMode

)

int selectCatalogObject	(	int	catalog,
		int	NNNN
	)

int selectSite

(

int

siteNum

)

int selectSubCatalog	(	int	catalog,
		int	subCatalog
	)

int selectTrackingMode

(

int

trackMode

)

int setAlignmentMode

(

unsigned int

alignMode

)

int setCalenderDate	(	int	dd,
		int	mm,
		int	yy
	)

int setCommandInt	(	int	data,
		const char *	cmd
	)

int setCommandXYZ	(	int	x,
		int	y,
		int	z,
		const char *	cmd
	)

int setFocuserMotion

(

int

motionType

)

int setFocuserSpeedMode

(

int

speedMode

)

int setMaxElevationLimit

(

int

max

)

int setMaxSlewRate

(

int

slewRate

)

int setMinElevationLimit

(

int

min

)

int setObjAlt

(

double

alt

)

int setObjAz

(

double

az

)

int setObjectDEC

(

double

dec

)

int setObjectRA

(

double

ra

)

int setSiteLatitude

(

double

Lat

)

int setSiteLongitude

(

double

Long

)

int setSiteName	(	char *	siteName,
		int	siteNum
	)

int setSlewMode

(

int

slewMode

)

int setStandardProcedure

(

char *

writeData

)

int setTrackFreq

(

double

trackF

)

int setUTCOffset

(

double

hours

)

int Slew

(

)

int Sync

(

char *

matchedObject

)

int testAP

(

)

int testTelescope

(

)

int updateSkyCommanderCoord	(	double *	ra,
		double *	dec
	)
