libfli-libfli.h File Reference

#include <string.h>
#include "libfli.h"
#include "libfli-sys.h"
#include "libfli-debug.h"

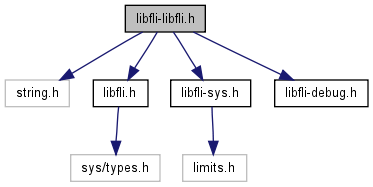

Include dependency graph for libfli-libfli.h:

Go to the source code of this file.

Classes
struct	flidevdesc_t
struct	flidevinfo_t
Defines
#define	___STRINGIFY(x)   #x
#define	__LIBFLIVER__
#define	__LIBFLIVER_MAJOR__   1
#define	__STRINGIFY(x)   ___STRINGIFY(x)
#define	CHKDEVICE(xdev)
#define	CHKFUNCTION(func)
#define	COMMAND(function)
#define	DEVICE   devices[dev]
#define	FLI_COMMAND(name, args)   name,
#define	FLI_COMMANDS
#define	FLIUSB_CAM_ID   0x02
#define	FLIUSB_FILTER_ID   0x07
#define	FLIUSB_FOCUSER_ID   0x06
#define	FLIUSB_VENDORID   0xf18
#define	IO(dev, buf, wlen, rlen)
#define	MAX_OPEN_DEVICES   (32)
#define	MAX_SEARCH_LIST   (16)
Enumerations
enum
Variables
flidevdesc_t *	devices [MAX_OPEN_DEVICES]
const char *	version

---

Define Documentation

#define ___STRINGIFY

(

x

)

#x

Definition at line 58 of file libfli-libfli.h.

#define __LIBFLIVER__

Value:

__STRINGIFY(__LIBFLIVER_MAJOR__) "."    \
  __STRINGIFY(__LIBFLI_MINOR__)

Definition at line 61 of file libfli-libfli.h.

#define __LIBFLIVER_MAJOR__   1

Definition at line 60 of file libfli-libfli.h.

#define __STRINGIFY

(

x

)

___STRINGIFY(x)

Definition at line 57 of file libfli-libfli.h.

#define CHKDEVICE

(

xdev

)

Value:

do {                                \
    if((xdev < 0) || (xdev >= MAX_OPEN_DEVICES))        \
    {                               \
      debug(FLIDEBUG_WARN,                  \
        "Attempt to use a device out of range (%d)", xdev); \
      return -EINVAL;                       \
    }                               \
    if(devices[xdev] == NULL)                   \
    {                               \
      debug(FLIDEBUG_WARN,                  \
        "Attempt to use a NULL device (%d)", xdev);     \
      return -EINVAL;                       \
    }                               \
  } while(0)

Definition at line 64 of file libfli-libfli.h.

#define CHKFUNCTION

(

func

)

Value:

do {                                \
    if(func == NULL)                        \
    {                               \
      debug(FLIDEBUG_WARN,                  \
        "Attempt to use a NULL function (" #func ")");  \
      return -EINVAL;                       \
    }                               \
  } while(0)

Definition at line 80 of file libfli-libfli.h.

#define COMMAND

(

function

)

Value:

do {                                \
    int err;                            \
    if((err = function))                    \
    {                               \
      debug(FLIDEBUG_WARN,                  \
        "Function `" #function "' failed, error: %d [%s]",  \
        err, strerror(-err));               \
      return err;                       \
    }                               \
  } while(0)

Definition at line 101 of file libfli-libfli.h.

#define DEVICE   devices[dev]

Definition at line 158 of file libfli-libfli.h.

#define FLI_COMMAND	(	name,
		args		)	name,

Definition at line 194 of file libfli-libfli.h.

#define FLI_COMMANDS

Value:

FLI_COMMAND(FLI_NONE, 0)            \
  FLI_COMMAND(FLI_GET_PIXEL_SIZE, 2)        \
  FLI_COMMAND(FLI_GET_ARRAY_AREA, 4)        \
  FLI_COMMAND(FLI_GET_VISIBLE_AREA, 4)      \
  FLI_COMMAND(FLI_SET_EXPOSURE_TIME, 1)     \
  FLI_COMMAND(FLI_SET_IMAGE_AREA, 4)        \
  FLI_COMMAND(FLI_SET_HBIN, 1)          \
  FLI_COMMAND(FLI_SET_VBIN, 1)          \
  FLI_COMMAND(FLI_SET_FRAME_TYPE, 1)        \
  FLI_COMMAND(FLI_CANCEL_EXPOSURE, 0)       \
  FLI_COMMAND(FLI_GET_EXPOSURE_STATUS, 1)   \
  FLI_COMMAND(FLI_SET_TEMPERATURE, 1)       \
  FLI_COMMAND(FLI_GET_TEMPERATURE, 1)       \
  FLI_COMMAND(FLI_GRAB_ROW, 2)          \
  FLI_COMMAND(FLI_EXPOSE_FRAME, 0)      \
  FLI_COMMAND(FLI_FLUSH_ROWS, 2)        \
  FLI_COMMAND(FLI_SET_FLUSHES, 1)       \
  FLI_COMMAND(FLI_SET_BIT_DEPTH, 1)     \
  FLI_COMMAND(FLI_READ_IOPORT, 1)       \
  FLI_COMMAND(FLI_WRITE_IOPORT, 1)      \
  FLI_COMMAND(FLI_CONFIGURE_IOPORT, 1)      \
  FLI_COMMAND(FLI_CONTROL_SHUTTER, 1)       \
  FLI_COMMAND(FLI_CONTROL_BGFLUSH, 1)       \
  FLI_COMMAND(FLI_SET_FILTER_POS, 1)        \
  FLI_COMMAND(FLI_GET_FILTER_POS, 1)        \
  FLI_COMMAND(FLI_GET_FILTER_COUNT, 1)      \
  FLI_COMMAND(FLI_STEP_MOTOR, 1)        \
  FLI_COMMAND(FLI_GET_STEPPER_POS, 1)       \
  FLI_COMMAND(FLI_HOME_FOCUSER, 0)

Definition at line 161 of file libfli-libfli.h.

#define FLIUSB_CAM_ID   0x02

Definition at line 114 of file libfli-libfli.h.

#define FLIUSB_FILTER_ID   0x07

Definition at line 115 of file libfli-libfli.h.

#define FLIUSB_FOCUSER_ID   0x06

Definition at line 116 of file libfli-libfli.h.

#define FLIUSB_VENDORID   0xf18

Definition at line 113 of file libfli-libfli.h.

#define IO	(	dev,
		buf,
		wlen,
		rlen		)

Value:

do {                                \
    int err;                            \
    if((err = devices[dev]->fli_io(dev, buf, wlen, rlen)))  \
    {                               \
      debug(FLIDEBUG_WARN, "Communication error: %d [%s]",  \
        err, strerror(-err));               \
      return err;                       \
    }                               \
  } while(0)

Definition at line 90 of file libfli-libfli.h.

#define MAX_OPEN_DEVICES   (32)

Definition at line 118 of file libfli-libfli.h.

#define MAX_SEARCH_LIST   (16)

Definition at line 119 of file libfli-libfli.h.

---

Enumeration Type Documentation

anonymous enum

Definition at line 193 of file libfli-libfli.h.

---

Variable Documentation

flidevdesc_t* devices[MAX_OPEN_DEVICES]

const char* version
