KSPlanetBase Class Reference

A subclass of SkyObject that provides additional information needed for solar system objects. More...

#include <ksplanetbase.h>

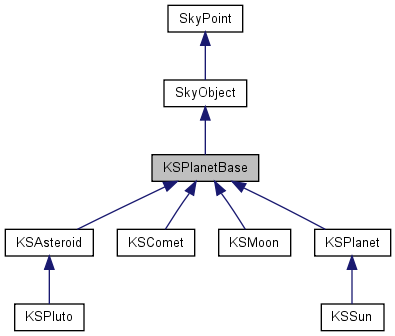

Inheritance diagram for KSPlanetBase:


Public Member Functions
void	addToTrail ()
double	angSize () const
void	clearTrail ()
void	clipTrail ()
const dms *	ecLat (void) const
void	EclipticToEquatorial (const dms *Obliquity)
const dms *	ecLong (void) const
void	EquatorialToEcliptic (const dms *Obliquity)
void	findPosition (const KSNumbers num, const dms lat=0, const dms LST=0, const KSPlanetBase Earth=0)
bool	hasTrail () const
const dms *	helEcLat (void) const
const dms *	helEcLong (void) const
QImage *	image (void)
QImage *	image0 (void)
bool	isMajorPlanet () const
	KSPlanetBase (KStarsData *kd, QString s=i18n("unnamed"), QString image_file="", double pSize=0)
virtual bool	loadData ()=0
virtual double	pa () const
double	physicalSize () const
double	rearth () const
void	rotateImage (double imageAngle)
double	rsun (void) const
void	scaleRotateImage (int scale, double imageAngle)
void	setAngularSize (double size)
void	setEcLat (double elat)
void	setEcLat (dms elat)
void	setEcLong (double elong)
void	setEcLong (dms elong)
void	setHelEcLat (double elat)
void	setHelEcLat (dms elat)
void	setHelEcLong (double elong)
void	setHelEcLong (dms elong)
void	setPA (double p)
void	setPhysicalSize (double size)
void	setRearth (const KSPlanetBase *Earth)
void	setRearth (double r)
void	setRsun (double r)
virtual void	showPopupMenu (KSPopupMenu *pmenu, QPoint pos)
QPtrList< SkyPoint > *	trail ()
virtual void	updateCoords (KSNumbers num, bool includePlanets=true, const dms lat=0, const dms *LST=0)
void	updateTrail (dms LST, const dms lat)
virtual	~KSPlanetBase ()
Protected Member Functions
virtual bool	findGeocentricPosition (const KSNumbers num, const KSPlanetBase Earth=NULL)=0
void	findPA (const KSNumbers *num)
virtual bool	loadData (QString n)
Protected Attributes
EclipticPosition	ep
EclipticPosition	helEcPos
double	Rearth
QPtrList< SkyPoint >	Trail

Detailed Description

A subclass of SkyObject that provides additional information needed for solar system objects.

This is a base class for KSPlanet, KSPluto, KSSun and KSMoon. Provides necessary information about objects in the solar system.

Author:: Mark Hollomon

Version:: 1.0

Definition at line 71 of file ksplanetbase.h.

Constructor & Destructor Documentation

KSPlanetBase::KSPlanetBase	(	KStarsData *	kd,
		QString	s = `i18n("unnamed")`,
		QString	image_file = `""`,
		double	pSize = `0`
	)

Constructor.

Calls SkyObject constructor with type=2 (planet), coordinates=0.0, mag=0.0, primary name s, and all other QStrings empty.

Parameters:

	kd	Some kind of data
	s	Name of planet
	image_file	filename of the planet's image
	pSize	the planet's physical size, in km

Todo:: Figure out what kd does.

Definition at line 32 of file ksplanetbase.cpp.

virtual KSPlanetBase::~KSPlanetBase ( ) [inline, virtual]

Destructor (empty).

Definition at line 88 of file ksplanetbase.h.

Member Function Documentation

void KSPlanetBase::addToTrail ( ) [inline]

adds a point to the planet's trail

Definition at line 256 of file ksplanetbase.h.

double KSPlanetBase::angSize ( ) const [inline]

Returns:: the Planet's angular size, in arcminutes

Definition at line 226 of file ksplanetbase.h.

void KSPlanetBase::clearTrail ( ) [inline]

clear the Trail

Definition at line 264 of file ksplanetbase.h.

void KSPlanetBase::clipTrail ( ) [inline]

removes the oldest point from the trail

Definition at line 260 of file ksplanetbase.h.

const dms* KSPlanetBase::ecLat ( void ) const [inline]

Returns:: pointer to Ecliptic Latitude coordinate

Definition at line 97 of file ksplanetbase.h.

void KSPlanetBase::EclipticToEquatorial ( const dms * Obliquity )

Convert Ecliptic logitude/latitude to Right Ascension/Declination.

Parameters:

Obliquity

current Obliquity of the Ecliptic (angle from Equator)

Definition at line 55 of file ksplanetbase.cpp.

const dms* KSPlanetBase::ecLong ( void ) const [inline]

Returns:: pointer to Ecliptic Longitude coordinate

Definition at line 92 of file ksplanetbase.h.

void KSPlanetBase::EquatorialToEcliptic ( const dms * Obliquity )

Convert Right Ascension/Declination to Ecliptic logitude/latitude.

Parameters:

Obliquity

current Obliquity of the Ecliptic (angle from Equator)

Definition at line 51 of file ksplanetbase.cpp.

virtual bool KSPlanetBase::findGeocentricPosition	(	const KSNumbers *	num,
		const KSPlanetBase *	Earth = `NULL`
	)			`[protected, pure virtual]`

find the object's current geocentric equatorial coordinates (RA and Dec) This function is pure virtual; it must be overloaded by subclasses.

This function is private; it is called by the public function findPosition() which also includes the figure-of-the-earth correction, localizeCoords().

Parameters:

	num	pointer to current KSNumbers object
	Earth	pointer to planet Earth (needed to calculate geocentric coords)

Returns:: true if position was successfully calculated.

Implemented in KSAsteroid, KSComet, KSMoon, KSPlanet, KSPluto, and KSSun.

void KSPlanetBase::findPA ( const KSNumbers * num ) [protected]

Determine the position angle of the planet for a given date (used internally by findPosition() ).

Definition at line 167 of file ksplanetbase.cpp.

void KSPlanetBase::findPosition	(	const KSNumbers *	num,
		const dms *	lat = `0`,
		const dms *	LST = `0`,
		const KSPlanetBase *	Earth = `0`
	)

Find position, including correction for Figure-of-the-Earth.

Parameters:

	num	KSNumbers pointer for the target date/time
	lat	pointer to the geographic latitude; if NULL, we skip localizeCoords()
	LST	pointer to the local sidereal time; if NULL, we skip localizeCoords()
	Earth	pointer to the Earth (not used for the Moon)

Definition at line 72 of file ksplanetbase.cpp.

bool KSPlanetBase::hasTrail ( ) const [inline]

Returns:: whether the planet has a trail

Definition at line 248 of file ksplanetbase.h.

const dms* KSPlanetBase::helEcLat ( void ) const [inline]

Returns:: pointer to Ecliptic Heliocentric Latitude coordinate

Definition at line 128 of file ksplanetbase.h.

const dms* KSPlanetBase::helEcLong ( void ) const [inline]

Returns:: pointer to Ecliptic Heliocentric Longitude coordinate

Definition at line 123 of file ksplanetbase.h.

QImage* KSPlanetBase::image ( void ) [inline]

Returns:: pointer to image of planet

Definition at line 169 of file ksplanetbase.h.

QImage* KSPlanetBase::image0 ( void ) [inline]

Returns:: pointer to unrotated image of planet

Definition at line 173 of file ksplanetbase.h.

bool KSPlanetBase::isMajorPlanet ( ) const

Returns:: true if the KSPlanet is one of the eight major planets

Definition at line 89 of file ksplanetbase.cpp.

virtual bool KSPlanetBase::loadData ( QString n ) [inline, protected, virtual]

Definition at line 289 of file ksplanetbase.h.

virtual bool KSPlanetBase::loadData ( ) [pure virtual]

Load the planet's orbital data from disk.

Returns:: true if data successfully loaded

Implemented in KSAsteroid, KSComet, KSMoon, KSPlanet, and KSSun.

virtual double KSPlanetBase::pa ( ) const [inline, virtual]

Returns:: the Planet's position angle.

Reimplemented from SkyObject.

Definition at line 217 of file ksplanetbase.h.

double KSPlanetBase::physicalSize ( ) const [inline]

Returns:: the Planet's physical size, in km

Definition at line 235 of file ksplanetbase.h.

double KSPlanetBase::rearth ( ) const [inline]

Returns:: distance from Earth, in Astronomical Units (1 AU is Earth-Sun distance)

Definition at line 186 of file ksplanetbase.h.

void KSPlanetBase::rotateImage ( double imageAngle )

rotate Planet image

Parameters:

imageAngle

the new angle of rotation for the image

Definition at line 186 of file ksplanetbase.cpp.

double KSPlanetBase::rsun ( void ) const [inline]

Returns:: distance from Sun, in Astronomical Units (1 AU is Earth-Sun distance)

Definition at line 177 of file ksplanetbase.h.

void KSPlanetBase::scaleRotateImage	(	int	scale,
		double	imageAngle
	)

scale and rotate Planet image

Parameters:

	scale	the scaling factor
	imageAngle	the new angle of rotation for the image

Definition at line 193 of file ksplanetbase.cpp.

void KSPlanetBase::setAngularSize ( double size ) [inline]

set the planet's angular size, in km.

size the planet's size, in km

Definition at line 231 of file ksplanetbase.h.

void KSPlanetBase::setEcLat ( double elat ) [inline]

Set Ecliptic Geocentric Latitude according to argument.

Differs from above function only in argument type.

Parameters:

elat

Ecliptic Latitude

Definition at line 119 of file ksplanetbase.h.

void KSPlanetBase::setEcLat ( dms elat ) [inline]

Set Ecliptic Geocentric Latitude according to argument.

Parameters:

elat

Ecliptic Latitude

Definition at line 113 of file ksplanetbase.h.

void KSPlanetBase::setEcLong ( double elong ) [inline]

Set Ecliptic Geocentric Longitude according to argument.

Differs from above function only in argument type.

Parameters:

elong

Ecliptic Longitude

Definition at line 108 of file ksplanetbase.h.

void KSPlanetBase::setEcLong ( dms elong ) [inline]

Set Ecliptic Geocentric Longitude according to argument.

Parameters:

elong

Ecliptic Longitude

Definition at line 102 of file ksplanetbase.h.

void KSPlanetBase::setHelEcLat ( double elat ) [inline]

Set Ecliptic Heliocentric Latitude according to argument.

Differs from above function only in argument type.

Parameters:

elat

Ecliptic Latitude

Definition at line 150 of file ksplanetbase.h.

void KSPlanetBase::setHelEcLat ( dms elat ) [inline]

Set Ecliptic Heliocentric Latitude according to argument.

Parameters:

elat

Ecliptic Latitude

Definition at line 144 of file ksplanetbase.h.

void KSPlanetBase::setHelEcLong ( double elong ) [inline]

Set Ecliptic Heliocentric Longitude according to argument.

Differs from above function only in argument type.

Parameters:

elong

Ecliptic Longitude

Definition at line 139 of file ksplanetbase.h.

void KSPlanetBase::setHelEcLong ( dms elong ) [inline]

Set Ecliptic Heliocentric Longitude according to argument.

Parameters:

elong

Ecliptic Longitude

Definition at line 133 of file ksplanetbase.h.

void KSPlanetBase::setPA ( double p ) [inline]

Set the Planet's position angle.

Parameters:

p

the new position angle

Definition at line 222 of file ksplanetbase.h.

void KSPlanetBase::setPhysicalSize ( double size ) [inline]

set the planet's physical size, in km.

size the planet's size, in km

Definition at line 240 of file ksplanetbase.h.

void KSPlanetBase::setRearth ( const KSPlanetBase * Earth )

compute and set the distance from Earth, in AU.

Parameters:

Earth

pointer to the Earth from which to calculate the distance.

Definition at line 123 of file ksplanetbase.cpp.

void KSPlanetBase::setRearth ( double r ) [inline]

Set the distance from Earth, in AU.

Parameters:

r

the new earth-distance in AU

Definition at line 191 of file ksplanetbase.h.

void KSPlanetBase::setRsun ( double r ) [inline]

Set the solar distance in AU.

Parameters:

r

the new solar distance in AU

Definition at line 182 of file ksplanetbase.h.

virtual void KSPlanetBase::showPopupMenu	(	KSPopupMenu *	pmenu,
		QPoint	pos
	)			`[inline, virtual]`

Show Solar System object popup menu.

Overloaded from virtual SkyObject::showPopupMenu()

Parameters:

	pmenu	pointer to the KSPopupMenu object
	pos	QPojnt holding the x,y coordinates for the menu

Reimplemented from SkyObject.

Definition at line 286 of file ksplanetbase.h.

QPtrList<SkyPoint>* KSPlanetBase::trail ( ) [inline]

Returns:: a reference to the planet's trail

Definition at line 252 of file ksplanetbase.h.

void KSPlanetBase::updateCoords	(	KSNumbers *	num,
		bool	includePlanets = `true`,
		const dms *	lat = `0`,
		const dms *	LST = `0`
	)			`[virtual]`

Update position of the planet (reimplemented from SkyPoint).

Parameters:

	num	current KSNumbers object
	includePlanets	this function does nothing if includePlanets=false
	lat	pointer to the geographic latitude; if NULL< we skip localizeCoords()
	LST	pointer to the local sidereal time; if NULL< we skip localizeCoords()

Reimplemented from SkyPoint.

Definition at line 59 of file ksplanetbase.cpp.

void KSPlanetBase::updateTrail	(	dms *	LST,
		const dms *	lat
	)

update Horizontal coords of the trail

Definition at line 162 of file ksplanetbase.cpp.

Member Data Documentation

EclipticPosition KSPlanetBase::ep [protected]

Definition at line 309 of file ksplanetbase.h.

EclipticPosition KSPlanetBase::helEcPos [protected]

Definition at line 313 of file ksplanetbase.h.

double KSPlanetBase::Rearth [protected]

Definition at line 315 of file ksplanetbase.h.

QPtrList<SkyPoint> KSPlanetBase::Trail [protected]

Definition at line 314 of file ksplanetbase.h.

The documentation for this class was generated from the following files:

kstars

KSPlanetBase Class Reference

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation

kstars

API Reference
